12V x 1A power supply (CB21851E)

Details
Written by: Newton C. Braga

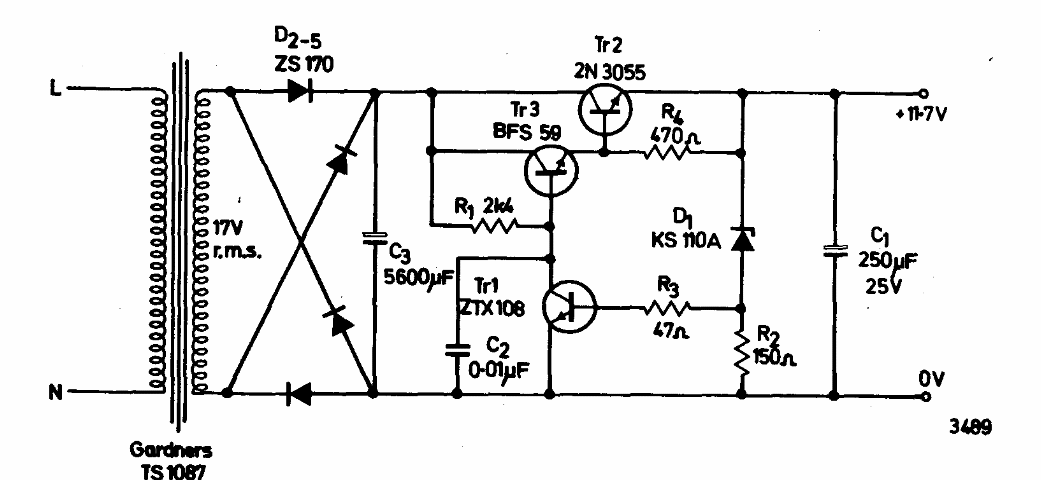

This stabilized power supply was found in the 1974 Ferranti transistor manual. The power transistor must be mounted on a heatsink.
