Logic test (CB21611E)

Details
Written by: Newton C. Braga

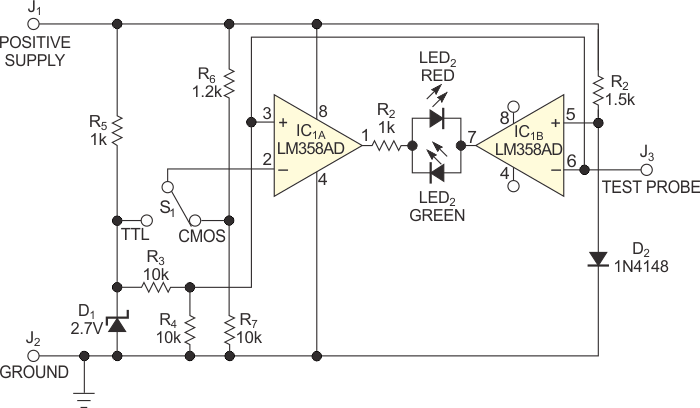

Using the LM358 from Texas Instruments, this circuit uses LED indicators and can be powered with voltages of 5V or according to the analyzed logic.




| Clique na imagem para ampliar |
