Three-phase generator 4017 (CB21043E)

Details
Written by: Newton C. Braga

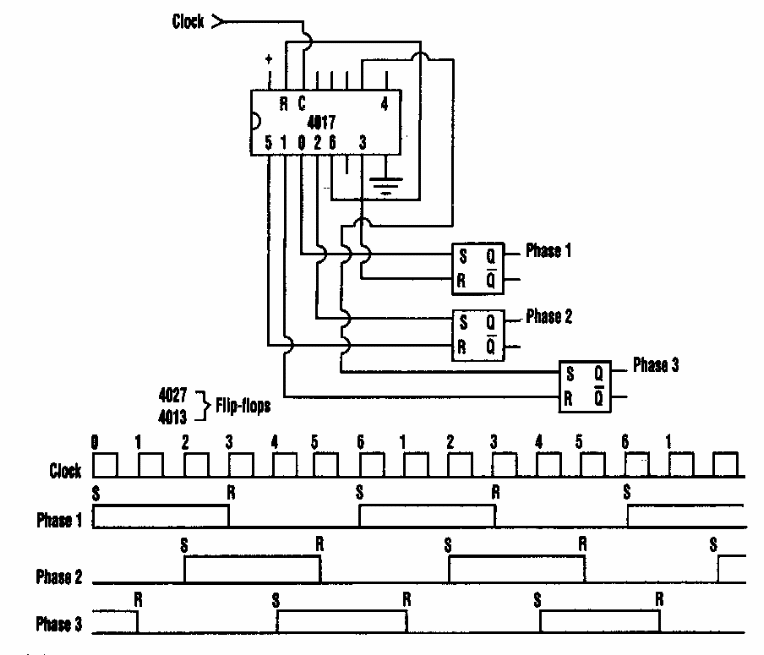

This circuit generates rectangular signals with 3-phase outputs. The circuit is from an Electronic Design from the 90s.




| Clique na imagem para ampliar |
