RF Monitor (CB21686E)

Details
Written by: Newton C. Braga

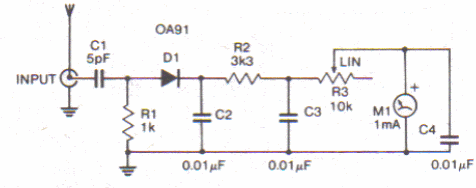

This RF monitor or field strength meter can use instruments from 100 uA to 1 mA full scale. The diode is germanium type.
