Power control with triac (CB21467E)

Details
Written by: Newton C. Braga

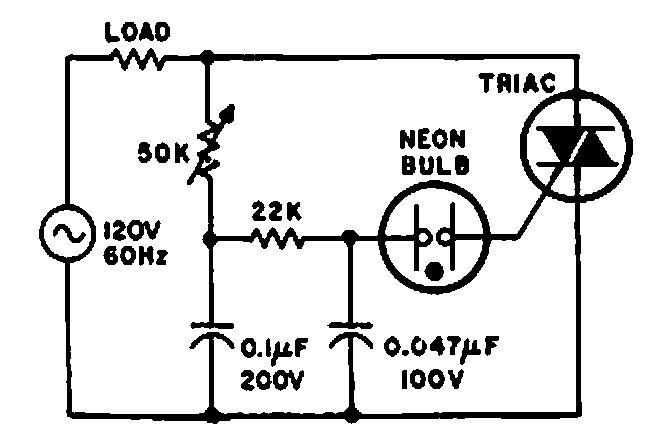

Found in a 1967 RCA power manual, this circuit uses an ordinary neon lamp to fire a triac. The circuit is for the 110V network.




| Clique na imagem para ampliar |
