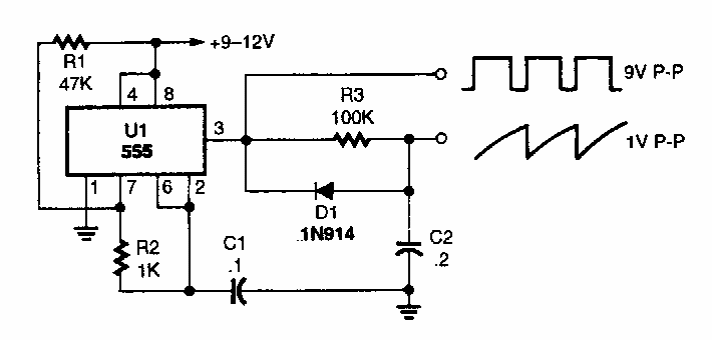

Sawtooth generator 555 (CB21229E)

Details
Written by: Newton C. Braga



This circuit was found in a Popular Electronics from the 90s. The frequency is given by R2 and C1.
