Video Modulator (CB21088E)

Details
Written by: Newton C. Braga

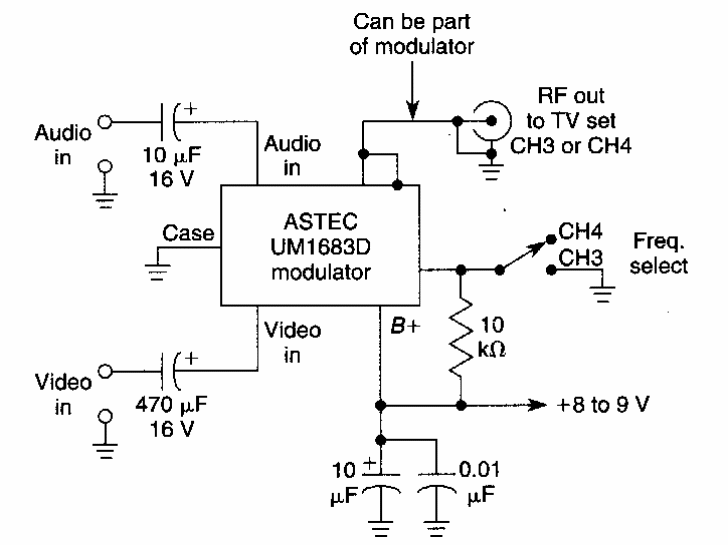

Found in older American documentation, this circuit is intended for use with analog TV. The active component used is from the period.
