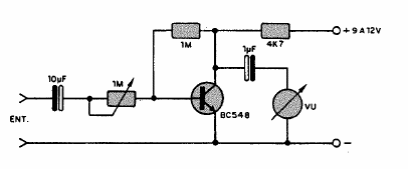

Transistorized VU (CB21729E)

Details
Written by: Newton C. Braga



The instrument of this circuit can be a common microammeter. The circuit has its operating point adjusted in the trimpot.
