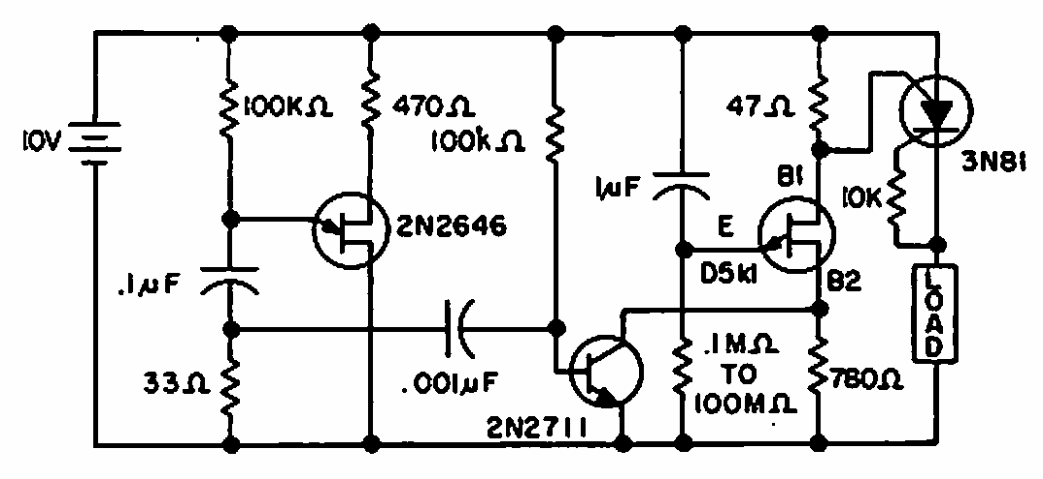

Found in General Electric documentation from 1967, this circuit makes use of an unusual semiconductor today, the 3N61. The circuit has the times given by the emitter capacitors of the unijunctions.
| Clique na imagem para ampliar |
Up to 90 seconds timer (CB21423E)
