Neon and SCR timer (CB21409E)

Details
Written by: Newton C. Braga

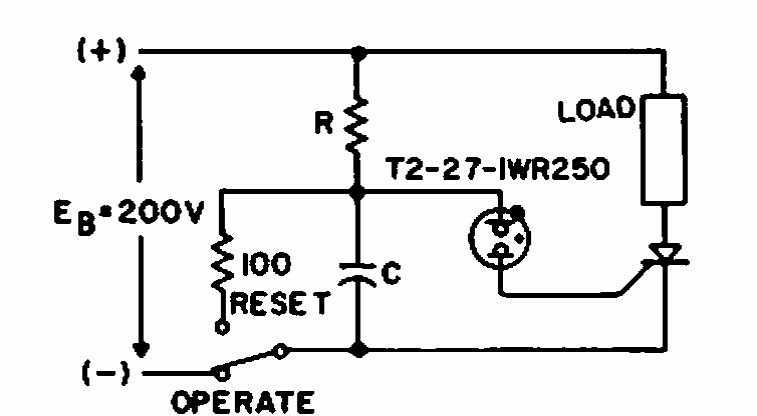

Found in an old neon lamp applications manual, this circuit directly triggers an SCR. R and C determine the timing.




| Clique na imagem para ampliar |
