Adjustable Noise Clipper (CB21106E)

Details
Written by: Newton C. Braga

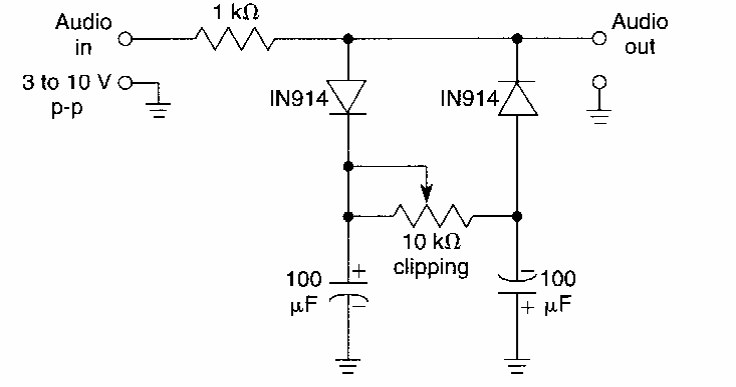

The purpose of this circuit is to limit the noise of an audio signal. Diodes are made of germanium. The circuit is from an old American manual.
