Morse Messenger (CB21089E)

Details
Written by: Newton C. Braga

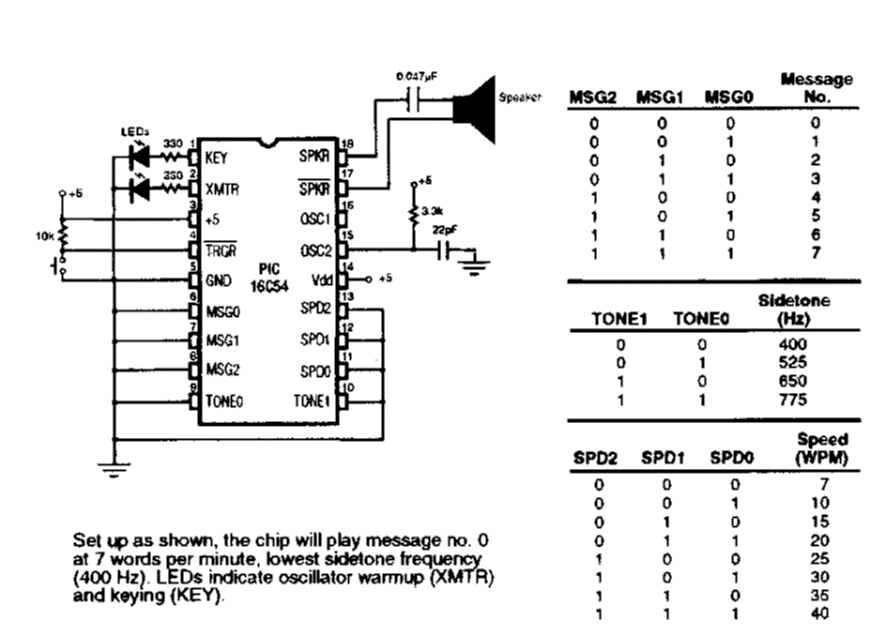

We found this circuit in a magazine 73 for radio amateurs from the 80's. The circuit makes use of an epochal component which is programmed according to the table beside the diagram.




| Clique na imagem para ampliar |
