Event counter (CB21064E)

Details
Written by: Newton C. Braga

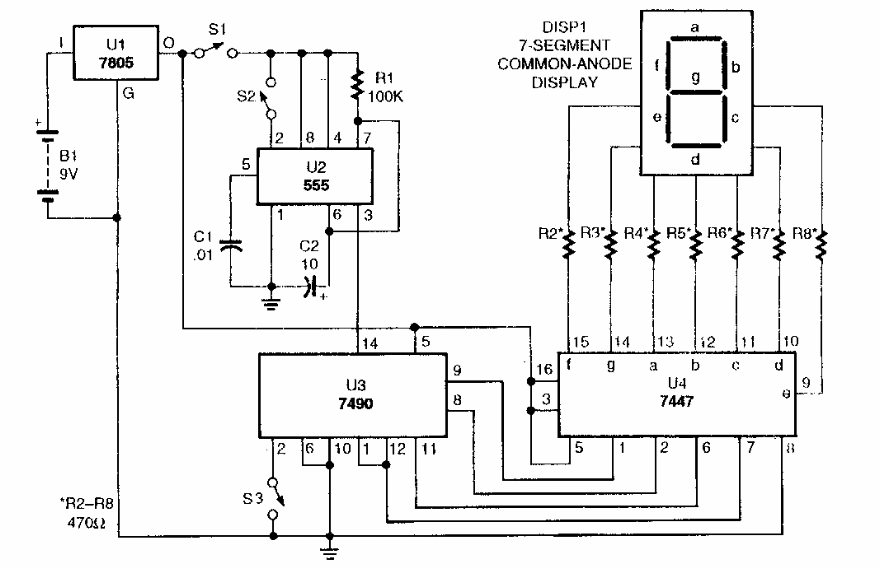

Found in a Popular Electronics from the 1990s, this circuit is a 1-digit counter that advances under the command of S2. The circuit can be expanded to more digits.
