1960 Hybrid Radio (CB21946E)

Details
Written by: Newton C. Braga

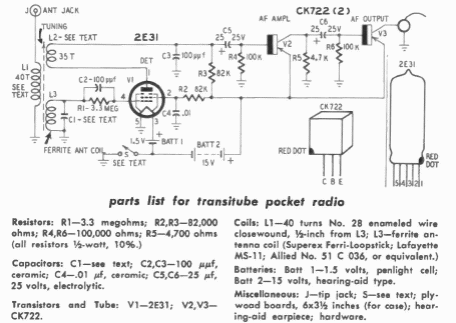

This circuit was found in a publication by Gernsback. It uses two batteries and in addition to the valve, two germanium transistors of the time. Listening is on high impedance headphones.
