Inverter (CB21932E)

Details
Written by: Newton C. Braga

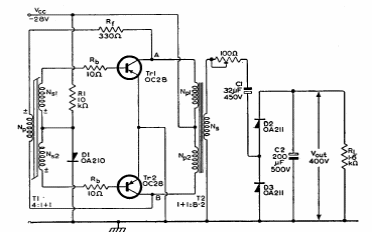

This voltage inverter was found in a 1960's Mullard manual. The transistors are from that time. No information about transformers is given. The maximum output current is on the order of 250 mA.
