One transistor radio (CB21635E)

Details
Written by: Newton C. Braga

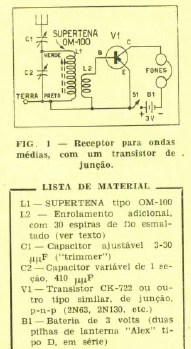

Based on what was once a very famous antenna coil (Supertena OM-100) for the mid-wave range, this simple receiver was found in a Popular Electronics magazine from July 1957. The transistor can be any general-purpose transistor.
