Multitone Oscillator (CB21555E)

Details
Written by: Newton C. Braga

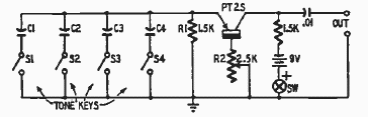

This circuit is from an American documentation from 1954 and is indicated for use in toys with a crystal transducer. Capacitors between 10 nF and 100 nF determine the tones.
