Ambiguity Circuit (CB21513E)

Details
Written by: Newton C. Braga

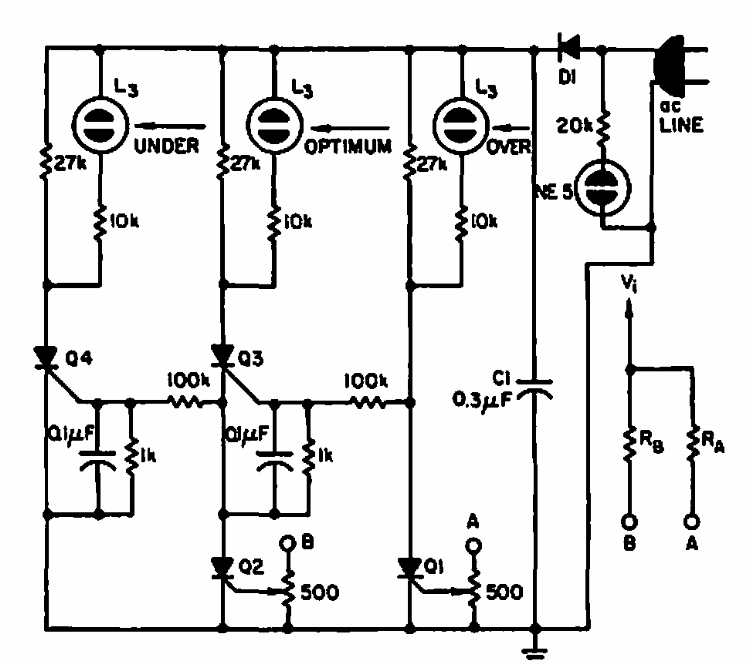

This circuit is intended for detecting 3 levels power grid voltage, and it can be adapted to operate with the most diverse voltages. The circuit uses neon indicator lamps.
