Up to 1 Hour timer (CB21424E)

Details
Written by: Newton C. Braga

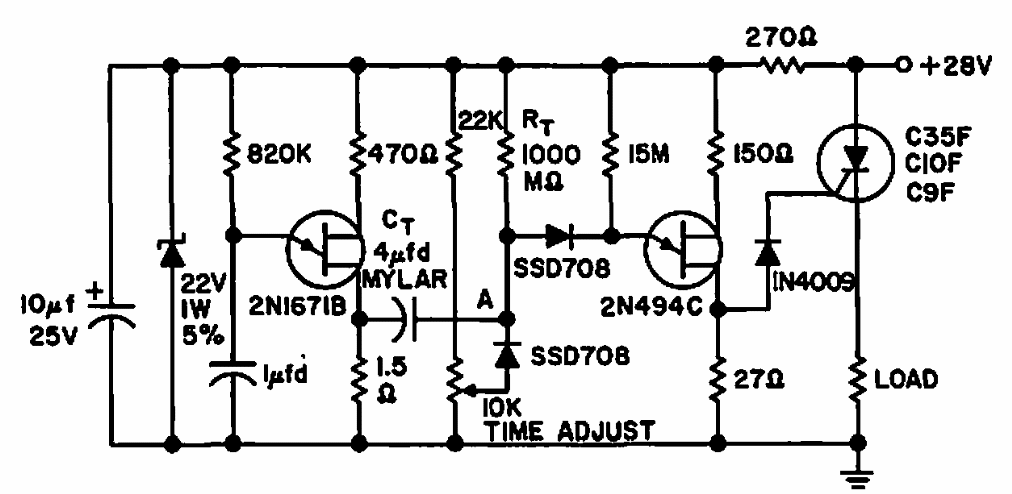

This circuit was found in a 1960s General Electric unijunction transistor manual. The circuit can use any unijunction and the SCR is load sensitive.
