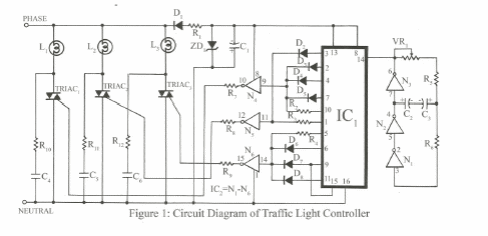

Traffic Light (CB21348E)

Details
Written by: Newton C. Braga



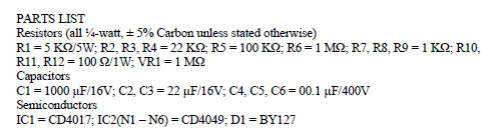

This control for a traffic light with incandescent lamps was obtained from an English documentation. The triacs must be according to the power of the lamps.
