Thermocouple Amplifier (CB21282E)

Details
Written by: Newton C. Braga

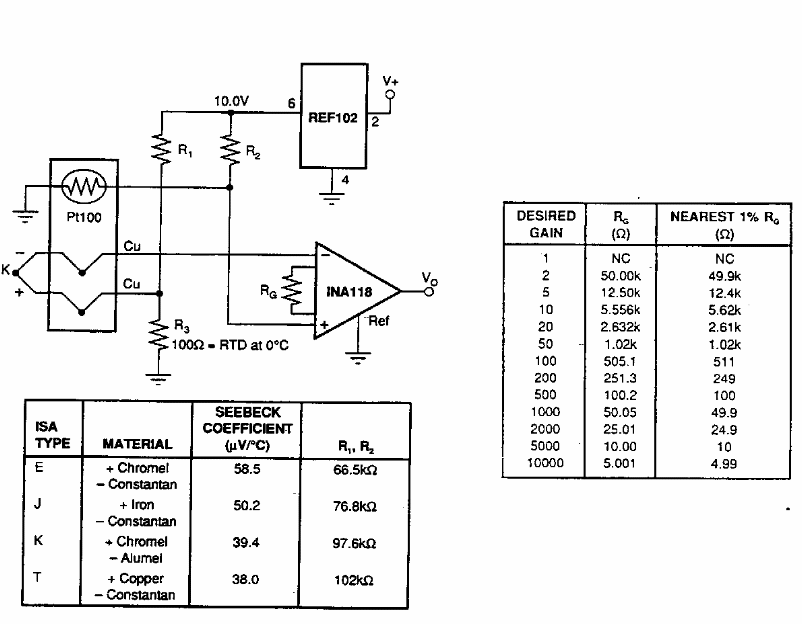

Found in old American documentation, this circuit uses Burr Brown components. The table opposite provides the components to be used for various gains.
