Crystal Radio (CB21207E)

Details
Written by: Newton C. Braga

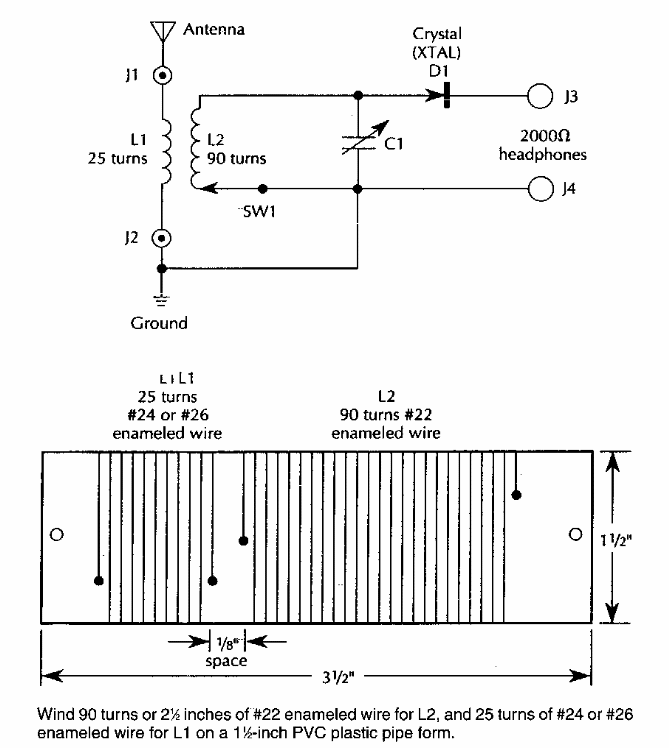

This crystal or galena radio was found in documentation from the 1990s. The earpiece must be a high impedance crystal or magnetic earpiece and D1 can be any germanium diode.
