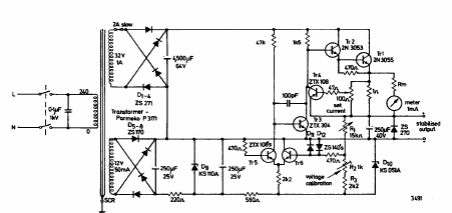

0 to 30 V power supply with 1A (CB21853E)

Details
Written by: Newton C. Braga



This adjustable power supply was found in Ferranti's transistor manual from 1974. Power transistors must be equipped with heatsinks.
