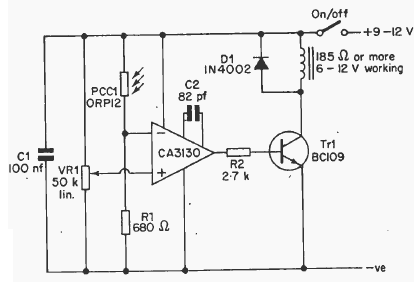

With an op amp with FET, this 1977 circuit uses an LDR as a sensor and drives a relay. The relay must be in accordance with the supply voltage.
Light relay CA3130 (CB21996E)
- Details
- Written by: Newton C. Braga
With an op amp with FET, this 1977 circuit uses an LDR as a sensor and drives a relay. The relay must be in accordance with the supply voltage.
