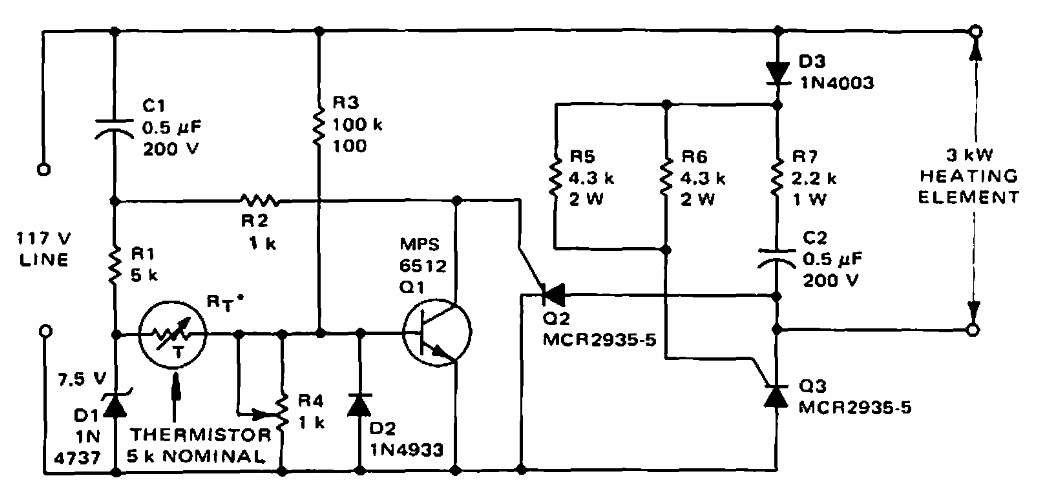

This heating element control with up to 3 kW was obtained from an old American documentation. SCRs must be load-compliant, and transistors can be current equivalents.
| Clique na imagem para ampliar |
3 kW Control (CB21382E)
