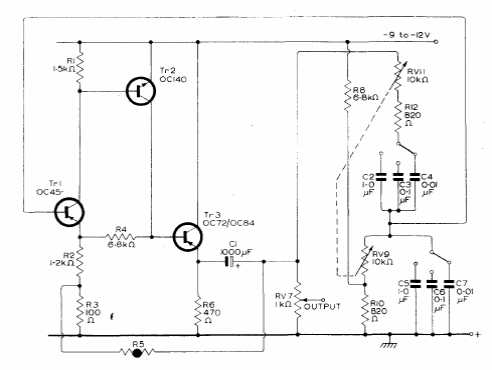

This variable oscillator was found in a Mullard transistors manual from 1960. The resistor R5 is 100k and the transistors are germanium of the time. Frequencies range from 15 Hz to 20 kHz.
