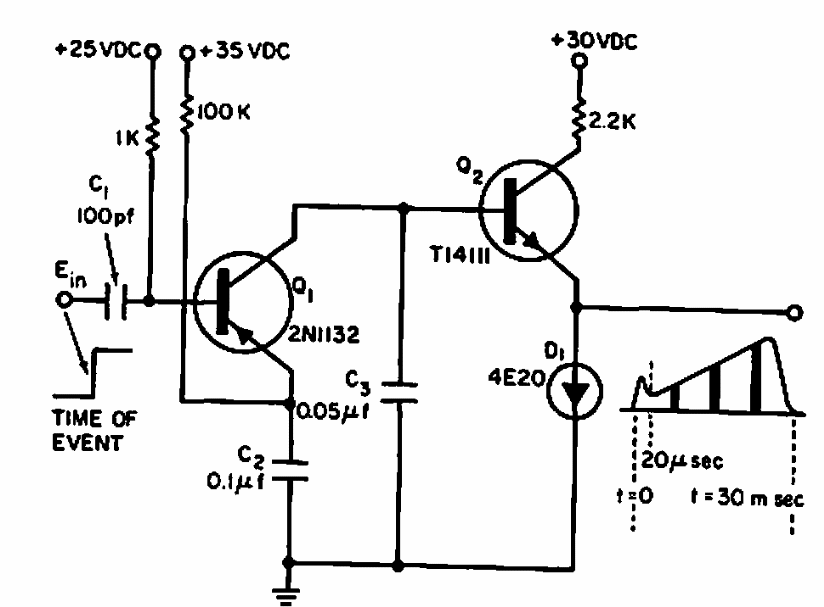

Found in a 1965 Electronic Design, this circuit produces a signal with the waveform shown in the figure from an input pulse. Components admit equivalents.
