VCR Video detector (CB20897E)

Details: Written by: Newton C. Braga

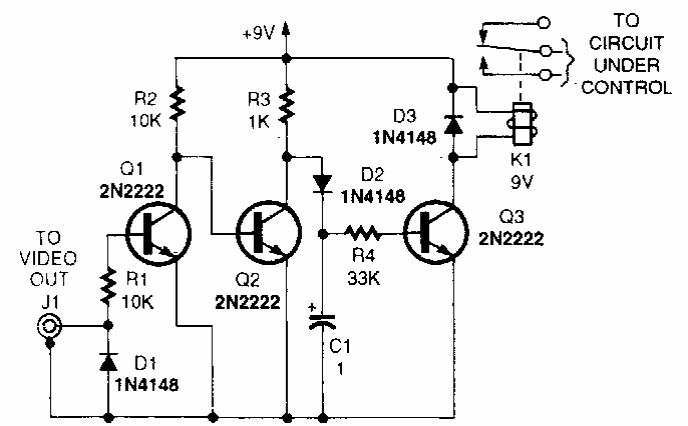

This circuit was found in a Popular Electronics from the 80s. It is possible to control a relay from a video signal. The circuit was used in video recorders of the time.

| Clique na imagem para ampliar |
