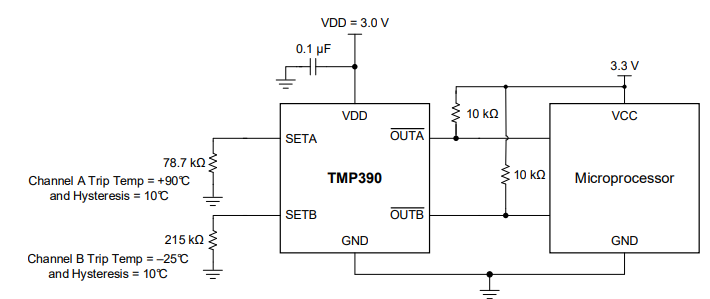

This is an example of a temperature sensor shield using the Texas Instruments TMP390 obtained from the datasheet itself (2019). The circuit has the temperature limits determined by the input resistors. See the datasheet on the company's website for values for other temperature ranges. Supply is 3.3 V.
