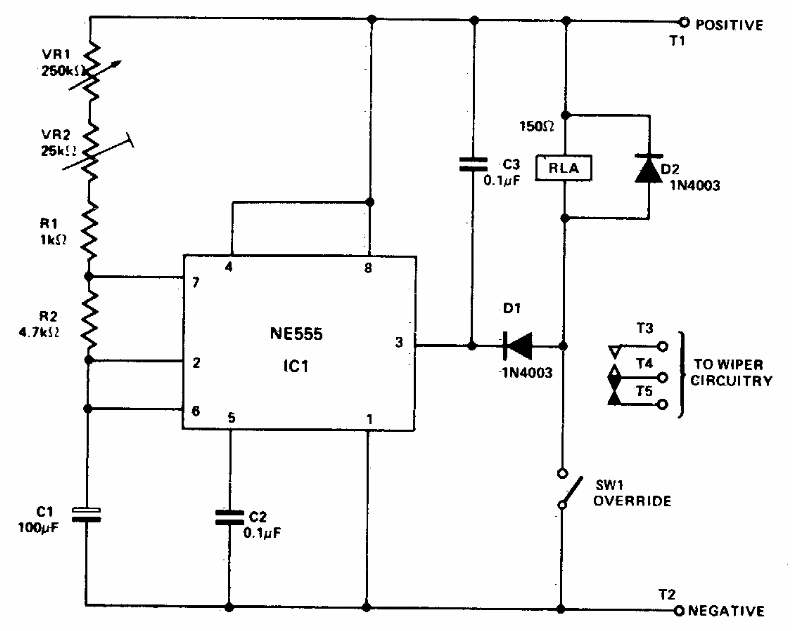

555 Interval (CB20659E)

This simple windscreen wiper interval was found in old American documentation. The relay must have contacts of at least 2 A.

| Clique na imagem para ampliar |
