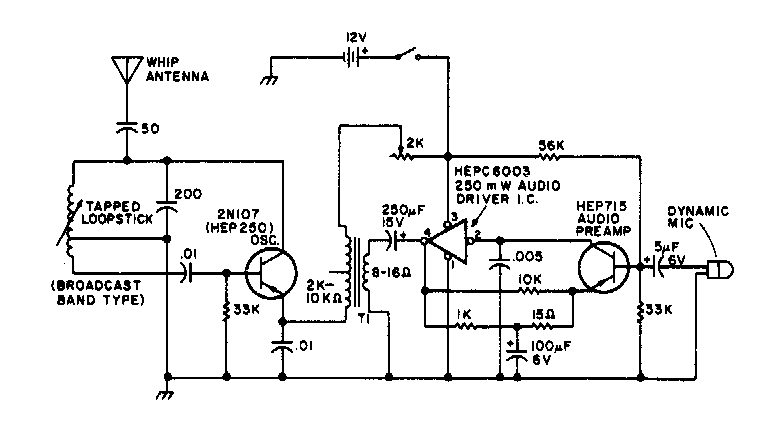

This small transmitter operates in the medium wave range. T1 is an output transformer for transistor radios. The operational admits a modern equivalent. The circuit is from the 80's documentation.
| Clique na imagem para ampliar |
1 to 2 MHz transmitter (CB20810E)
- Details
- Written by: Newton C. Braga
