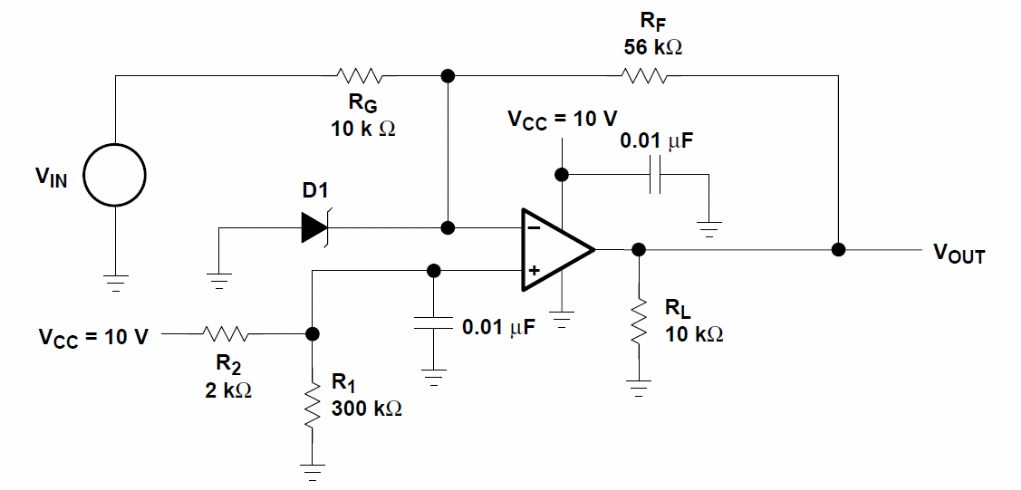

This inverter amplifier is suggested by a technical documentation from Texas Instruments. The RF and Rg resistors determine the gain and can be changed. The output impedance is 10 k and the power supply need not be symmetrical. The circuit applies to Texas TL and TLC series operational amplifiers.
