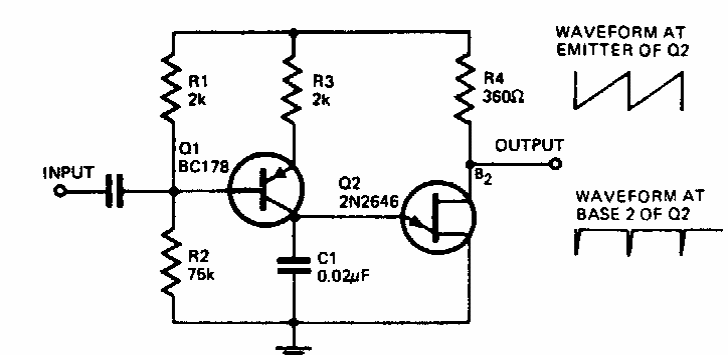

The transistor of this circuit can be the BC558. The circuit is from an old documentation generating something around 8 kHz as the central frequency. The positive power line, not shown, can have voltages from 9 to 15 V.
