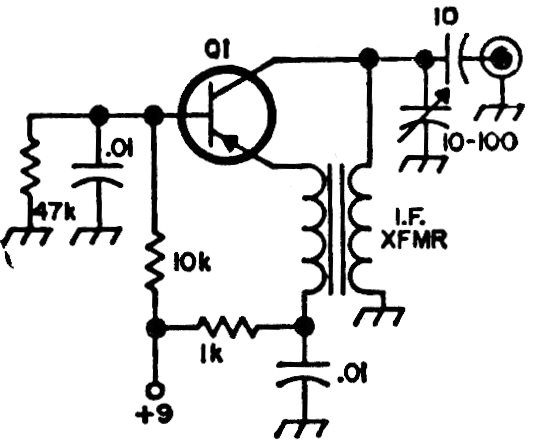

This circuit can be used to listen for SSB signals on receivers that do not have the built-in feature. The coil must be an IF of the frequency of the receiving device. The transistor can be any common type of low power RF.
Beat frequency generator (CB20378E)
- Details
- Written by: Newton C. Braga
