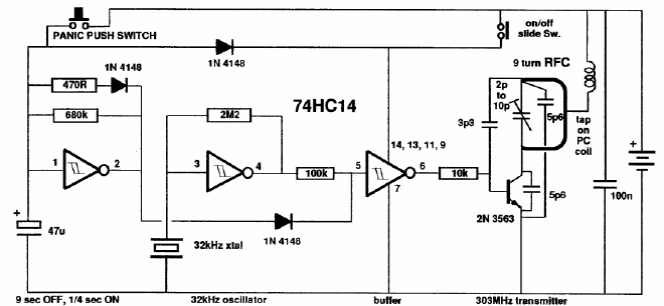

I found this little signaling transmitter in old American documentation. The circuit has a good range depending on the antenna used and the sensitivity of the receiver. The supply must be made with a voltage of 5 V given the use of TTL technology.
| Clique na imagem para ampliar |
