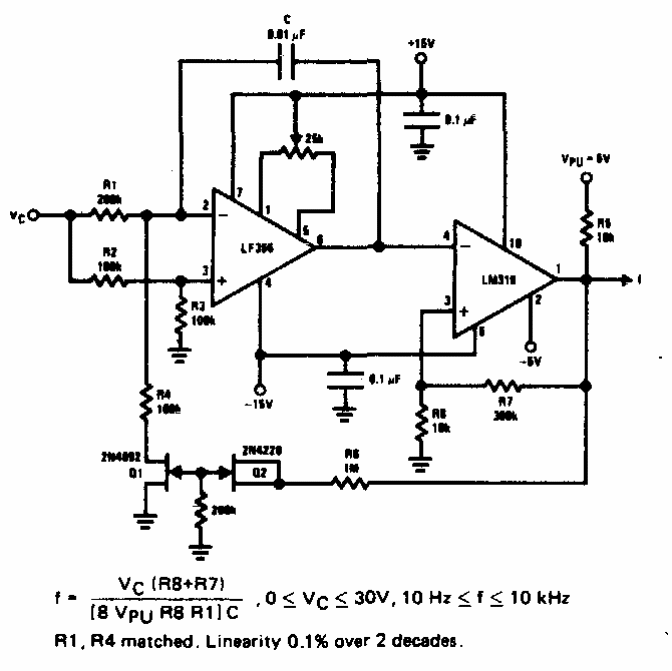

The circuit is from American documentation from the 1980s. Operational ones are not common today, but they can be replaced by modern equivalents. The circuit serves as a reference for a current project.
| Clique na imagem para ampliar |
Three-decade VCO (CB20603E)
- Details
- Written by: Newton C. Braga
