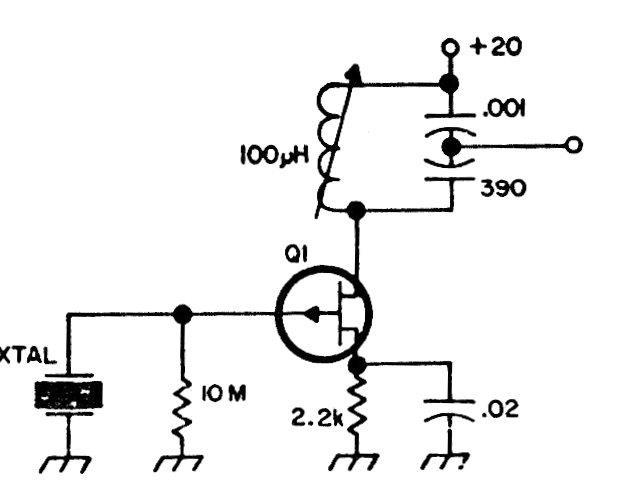

This circuit with a common FET generates signals around 1 MHz, depending on the crystal used. We found it in an old publication for radio amateurs.
1MHz FET Oscillator (CB20379E)
- Details
- Written by: Newton C. Braga
This circuit with a common FET generates signals around 1 MHz, depending on the crystal used. We found it in an old publication for radio amateurs.
