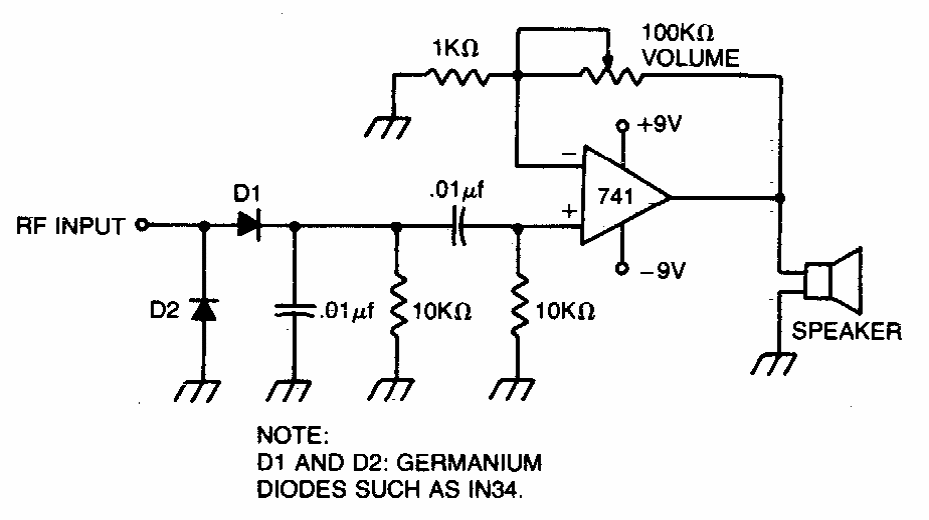

This circuit reproduces in a small loudspeaker the sound of the signal that modulates a transmitter. The circuit works by sampling the signal being transmitted. The speaker is high impedance (at least 100 ohms).
| Clique na imagem para ampliar |
Modulation Monitor (CB20764E)
- Details
- Written by: Newton C. Braga
