5 V from 3 V source (CB20463E)

Details
Written by: Newton C. Braga

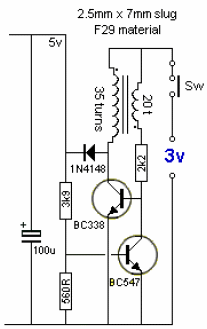

This circuit was found in recent English documentation consisting of a small inverter capable of raising the voltage from 3 V to 5 V. The critical component is the small transformer of homemade construction.
