Diode test (CB20735E)

Details
Written by: Newton C. Braga

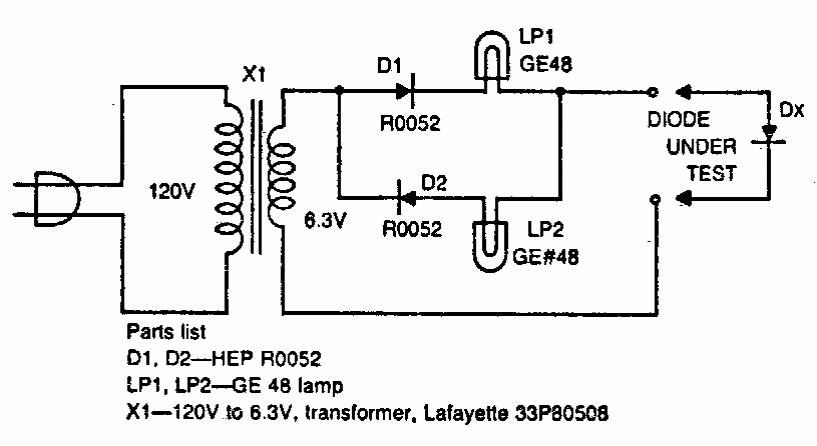

This simple diode test appears at other points in this section. Or circuit can be adapted to use LEDs instead of ordinary lamps.
