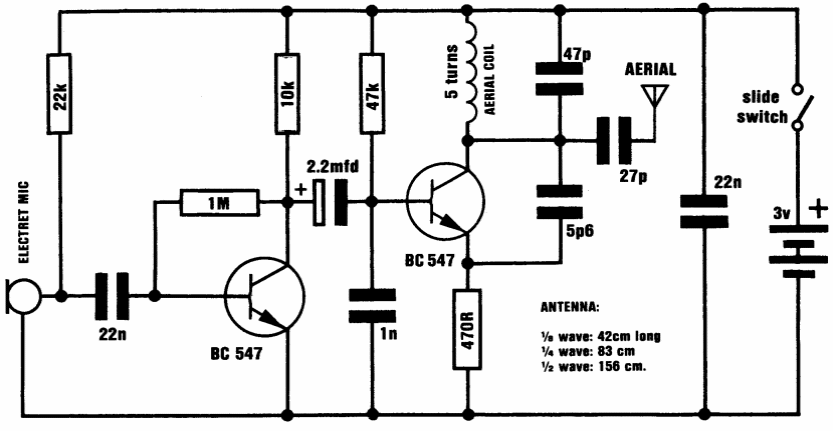

This circuit was found in an American documentation and there are several similar versions on the site, including a plate design. The transistor can be the BC548, and the capacitors must all be ceramic. The antenna is a rigid wire 15 to 30 cm long.
