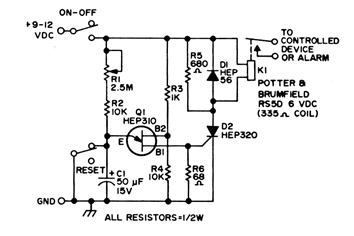

The timing of this timer found in American documentation depends on capacitor C1. This component can be increased to obtain longer timings. The circuit has a lock due to the use of the relay which can be of the sensitive type of 12 V.
Timer from 2 seconds to a few minutes (CB20369E)
- Details
- Written by: Newton C. Braga
