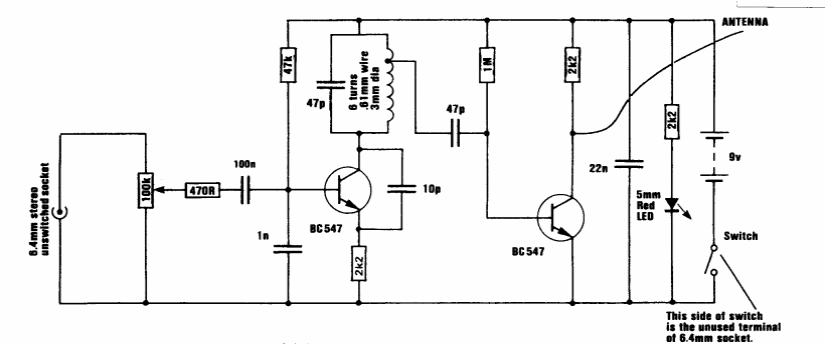

The purpose of this circuit is to transmit the signal from a guitar pickup to an FM receiver placed nearby. The circuit is powered by batteries and the antenna consists of a 15 to 40 cm long piece of wire. The transistors can also be the BF494.
| Clique na imagem para ampliar |
