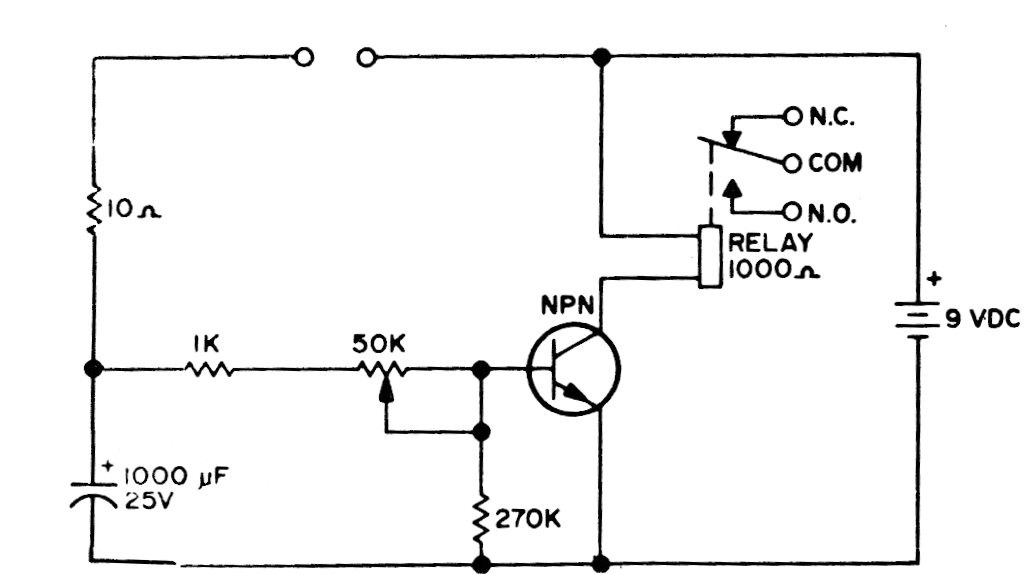

This circuit was obtained in a documentation from the 1970s. What it does is to delay trigger a relay when a sensor or switch has been connected to the open terminals of the diagram. The transistor can be the BC548 and the relay from 6 to 12 V depending on the power supply.
