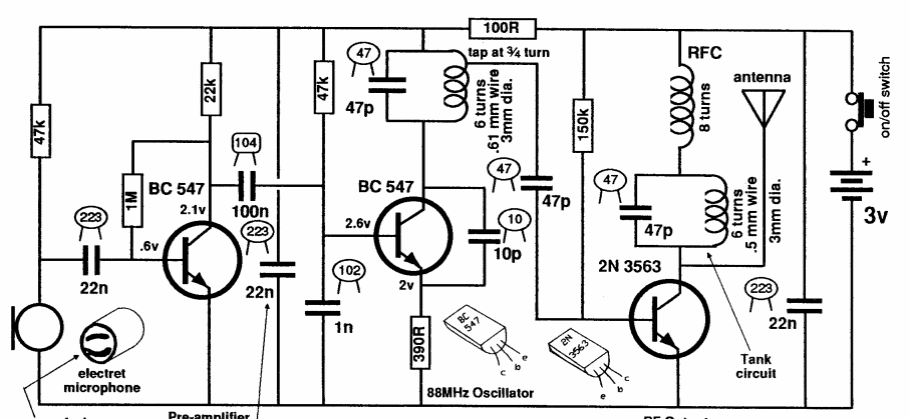

This small transmitter has an RF amplifier stage with coupling made from the central socket of the oscillating coil. The range depends on the antenna and the receiver. The circuit was found in American documentation.
