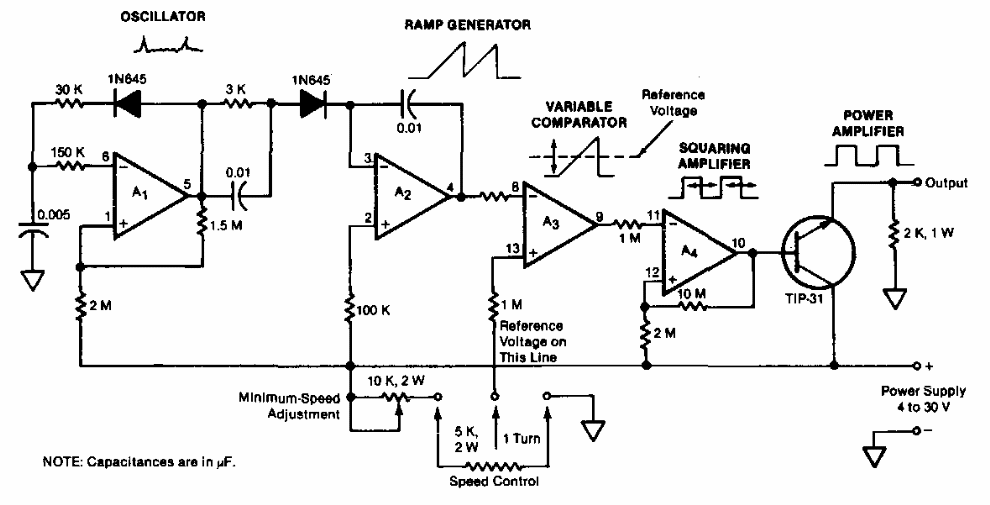

We found this circuit in a NASA documentation from the 1980s. The circuit is based on operational amplifiers such as the LM3900 and can be powered by a simple source of 4 to 30 V. The repetition rate of the pulses is 1 kHz.
| Clique na imagem para ampliar |
