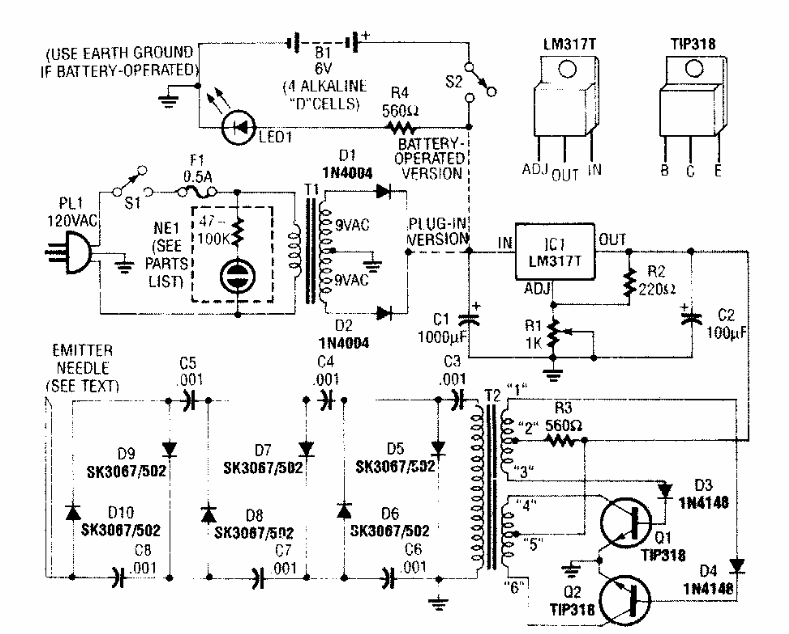

Negative ion generator (CB20683E)

Details
Written by: Newton C. Braga



This circuit was found in Radio Electronics from the 90s. The components used are common, and the transistors and CIs must be equipped with heat sinks.
