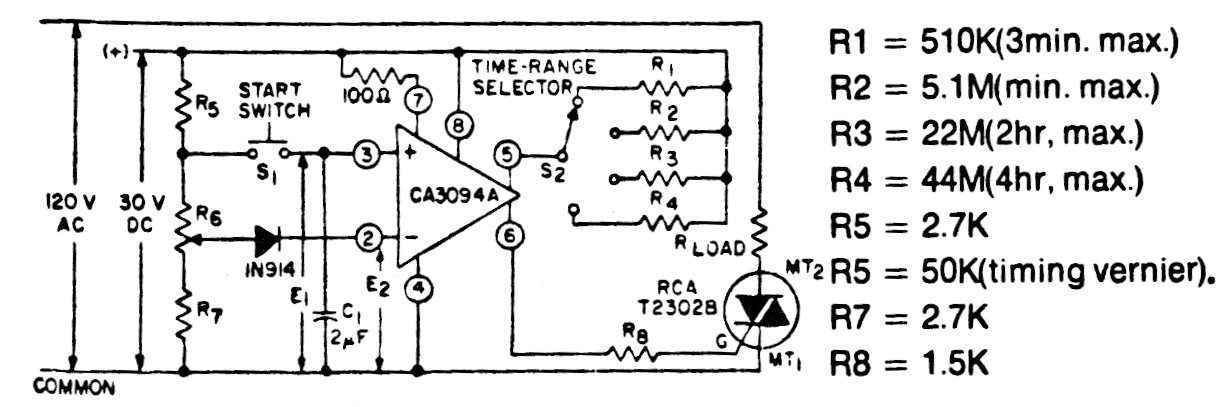

This timer directly controls a load connected to the power grid through a triac. The circuit is from old RCA documentation. The integrated circuit used is uncommon today, but the circuit can serve as a basis for projects with more modern equivalent operationals.
