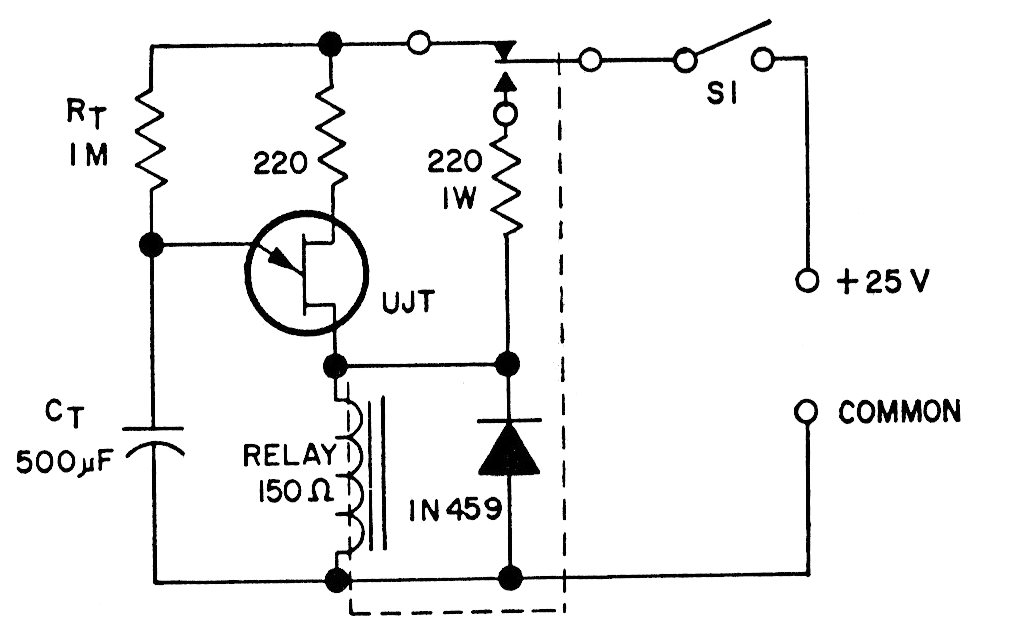

With the use of a very sensitive and lockable relay this circuit can be used in intervals of 15 to 20 seconds. The circuit has a latch, opening when the power is momentarily turned off. This circuit was in documentation from the 70s.
| Clique na imagem para ampliar |
