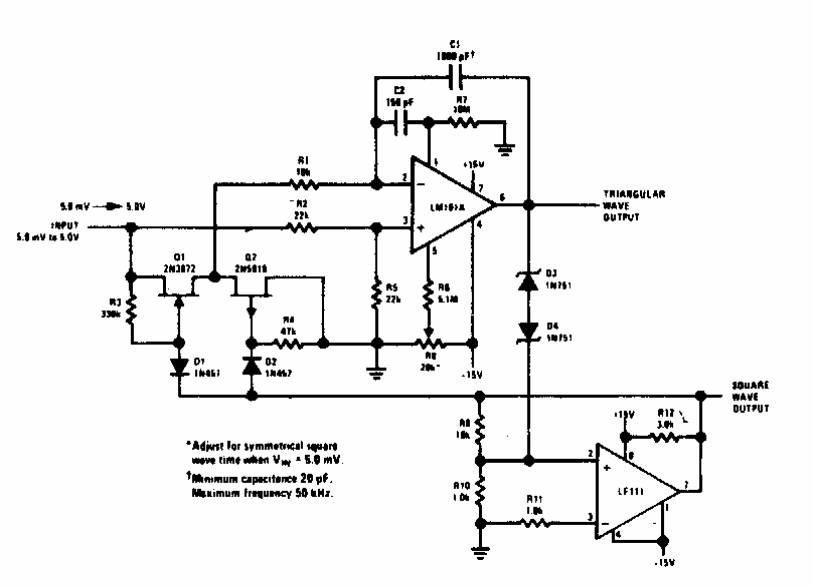

10 Hz to 10 kHz Voltage controlled oscillator (CB20600E)

Details
Written by: Newton C. Braga



This circuit was found in documentation from the 80s. The components are from the time, but the configuration can be adapted to use modern components.
